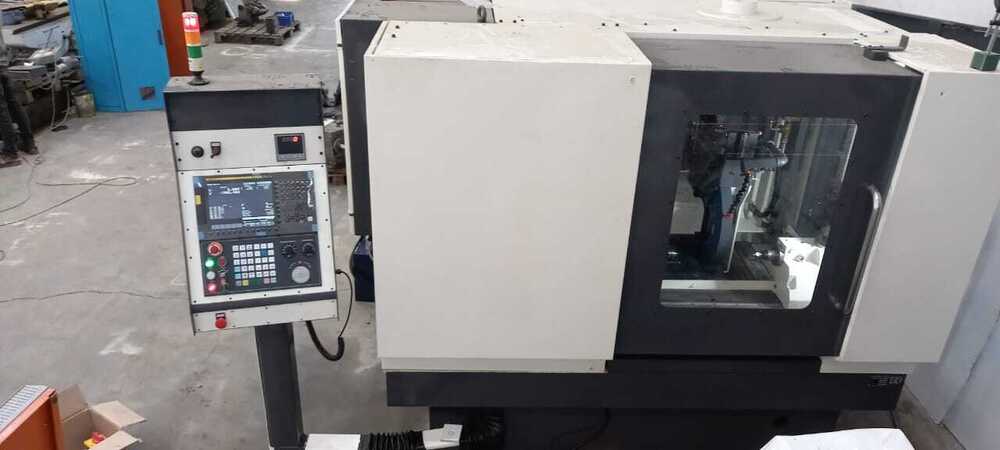

CNC External Grinding Machine

Product Description

A CNC external grinding machine is a specialized, computer-controlled machine tool used to precisely shape and finish the outer surfaces of workpieces. It uses a rotating abrasive wheel to remove very small amounts of material, which allows it to achieve extremely tight dimensional tolerances and a superior surface finish. Unlike traditional manual grinders, the entire process is automated and controlled by a computer numerical control (CNC) system.


How it Works

• The working principle of a CNC external grinding machine is a controlled abrasive process.

• The workpiece, which is a cylindrical or conical part, is securely held and rotated between a headstock and a tailstock.

• The grinding wheel, a rapidly rotating wheel composed of abrasive particles, is brought into contact with the spinning workpiece.

The CNC system precisely controls the movement of both the grinding wheel and the workpiece along multiple axes (e.g., X and Z axes). This allows for a variety of grinding motions, such as plunging into the workpiece or traversing along its length.

As the wheel abrades the workpiece, a continuous stream of coolant is applied to prevent the buildup of heat, which can damage the workpiece and the machine.

The CNC system constantly monitors the process, adjusting parameters like feed rate and depth of cut to ensure the final product meets the exact specifications from the program.

Key Components

• Machine Bed/Base: A robust, vibration-dampening foundation, typically made of cast iron, that supports all other components and ensures stability during grinding.

• Headstock & Tailstock: These components hold and rotate the workpiece. The headstock contains the drive mechanism, while the tailstock provides support to the opposite end, preventing deflection.

• Grinding Wheel: The primary cutting tool. It's a composite of abrasive grains (like aluminum oxide or silicon carbide) bonded together, which wears down as it cuts.

• Wheel Head: The assembly that holds and drives the grinding wheel. It's mounted on a slide that moves it in and out of the workpiece.

• CNC Control Panel: The "brain" of the machine. It houses the computer and interface where operators input programs, monitor the process, and adjust settings.

• Coolant System: A system that delivers a continuous flow of fluid to lubricate the grinding process and dissipate heat.


Applications

CNC external grinding machines are essential for producing components that require high precision and a fine surface finish. They're widely used in industries such as:

• Automotive: For grinding crankshafts, camshafts, and gear shafts.
• Aerospace: For manufacturing turbine blades, landing gear components, and other critical parts.
• Tool and Die Making: For producing and sharpening cutting tools like drills and reamers.
• Medical: For creating surgical tools, implants, and precision instruments.

Reliable Performance and Cost Efficiency

Engineered with low power consumption in mind, the CNC External Grinding Machine is perfect for industries seeking efficient yet economical solutions. Its polished mild steel build ensures long-lasting performance even in demanding environments. Users benefit from a combination of reduced operational expenses and consistent, high-quality results.


Precision and Quality Assurance

Thanks to sophisticated CNC technology, this external grinding machine delivers accurate and repeatable grinding for a variety of industrial applications. Its advanced control systems guarantee proper execution on every task, supporting manufacturers and suppliers in maintaining strict quality standards.
