Semi Automatic Cnc Wood Router Machine

Get a Price/Quote

Product Details:

Power Source Electric
Surface Treatment Powder Coated
Accuracy 0.05 mm
Control System DSP Controller
Operating Pressure Standard Atmospheric
Technology CNC (Computer Numerical Control)
Automation Grade Semi Automatic
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Semi Automatic Cnc Wood Router Machine Price And Quantity

Minimum Order Quantity 1 Piece

Semi Automatic Cnc Wood Router Machine Product Specifications

Automation Grade Semi Automatic
Technology CNC (Computer Numerical Control)
Operating Pressure Standard Atmospheric
Control System DSP Controller
Accuracy 0.05 mm
Accessories Type Collet, Tool Holder, Dust Collector
Application Woodworking, Furniture, Sign Making
Machine Type Router
Function Wood Engraving, Cutting, Carving
Type Semi Automatic CNC Wood Router
Features High Precision, Easy Operation, Rugged Construction, Digital Display
Voltage 220V/380V (Optional)
Power Source Electric
Surface Treatment Powder Coated
Material Mild Steel

Maximum Working Height 200 mm
Net Weight 1000 kg (Approx)
Spindle Speed 0-24000 RPM
Working Table Size 1300 x 2500 mm
Spindle Power 3.5 kW / 4.5 kW (Options Available)
Lubrication System Automatic Lubrication
Operation Mode Offline/USB/CNC Controller
Traveling Speed 0-25000 mm/min
Clamping System T-slot & Vacuum Combined
Software Compatibility ArtCAM, Type3, Ucancam, JDpaint
Drive Type Stepper Motor
Cooling System Water Cooling
Guide Rail Type Linear Square Rail

Semi Automatic Cnc Wood Router Machine Trade Information

FOB Port mudara
Payment Terms Paypal, Cash in Advance (CID), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)
Supply Ability 100 Piece Per Day
Delivery Time 1 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India

Product Description

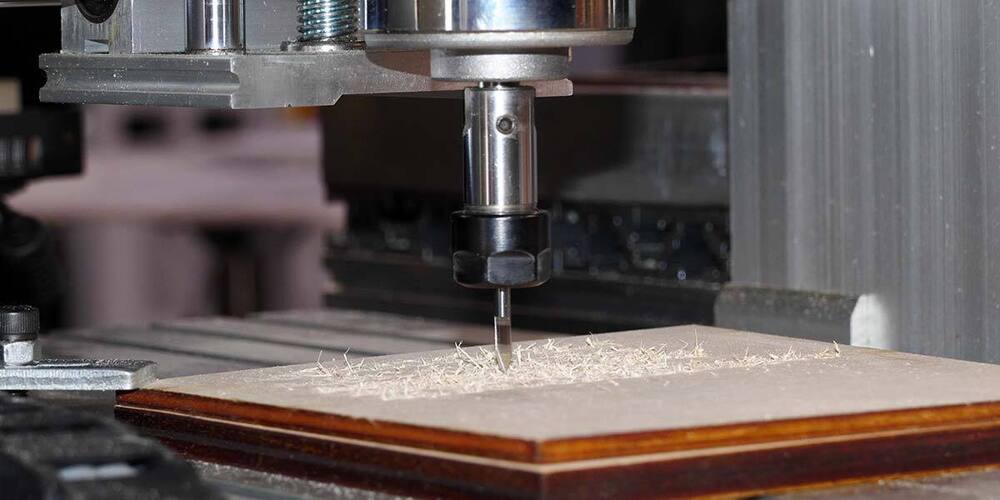

A semi-automatic CNC wood router machine is a Computer Numerical Control (CNC) device for cutting and shaping wood that requires some degree of manual intervention during operation. Unlike a fully automatic machine with an Automatic Tool Changer (ATC), which can swap tools and complete an entire job without operator input, a semi-automatic model requires a person to manually change the router bits between different cutting operations.The user still benefits from the precision and speed of computer-controlled motion (via G-code) for all cutting paths, but they must manually load and unload the workpiece, and, most importantly, change the cutting tools when the program calls for a new one. This makes semi-automatic machines a more cost-effective and simpler option for workshops with lower production volumes or for tasks that don't require frequent tool changes.

Precision Engineering for Woodworking Excellence

Equipped with a linear square rail and stepper motor drive, this semi-automatic CNC wood router ensures high accuracy, achieving up to 0.05 mm precision. The machine's sturdy mild steel construction and powder-coated finish guarantee durability, while the combined T-slot and vacuum clamping system securely holds workpieces for intricate woodwork.

Versatile Operation and Software Compatibility

This CNC router stands out with flexible operation modes, including offline USB connectivity and DSP controller support. It is compatible with leading design software such as ArtCAM, Type3, Ucancam, and JDpaint, making it easy to transition designs from concept to reality, significantly streamlining the workflow for woodworking professionals.

Enhanced Efficiency and User-Friendly Features

The water-cooled spindle, automatic lubrication, and digital display contribute to effortless operation and maintenance. Operators benefit from user-friendly controls, rugged construction, and a fast traveling speed of up to 25,000 mm/min, all contributing to higher productivity and consistent results for manufacturers and suppliers in the woodworking industry.

FAQ's of Semi Automatic Cnc Wood Router Machine:

Q: How do I operate the Semi Automatic CNC Wood Router Machine?

A: The machine supports offline operation via USB and DSP controller, allowing users to load their design files using compatible software like ArtCAM, Type3, or JDpaint. Simply secure the material using the combined T-slot and vacuum clamping system, set your parameters, and initiate the process through the intuitive CNC controller.

Q: What materials and applications is this CNC wood router suitable for?

A: This CNC wood router is engineered for woodworking applications, including furniture production, sign making, and decorative carving. Designed primarily for wood, it is suitable for engraving, cutting, and 3D carving tasks with high precision and consistent quality results.

Q: When is regular maintenance required for this CNC router?

A: Thanks to its automatic lubrication system, routine maintenance is simplified. However, it's advisable to inspect the water cooling and dust collection systems periodically and check the machine's moving parts every few weeks to ensure optimal performance and longevity.

Q: Where can this CNC wood router be installed and used?

A: The machine is suitable for installation in woodworking shops, furniture manufacturing units, and sign-making facilities. With its robust design and powder-coated finish, the router performs reliably in a typical workshop environment with standard atmospheric pressure and either 220V or 380V electric supply.

Q: What process does the machine follow to produce detailed woodwork?

A: After loading the design into the compatible software, the file is transferred to the machine via USB or controller. The stepper motors and linear square rails guide the spindle over the workpiece, executing the programmed operations with high accuracy, while dust collection and cooling systems maintain cleanliness and stability.

Q: How does the combined T-slot and vacuum clamping system benefit usage?

A: This feature ensures that various sizes and shapes of wood are firmly held in place during operation, minimizing movement and vibration. As a result, users achieve cleaner cuts, more precise carving, and increased safety throughout the machining process.

Q: What are the main benefits of choosing this semi-automatic CNC wood router?

A: Key advantages include high-precision woodworking, user-friendly operation, robust and durable construction, and compatibility with leading design software. Manufacturers, suppliers, and distributors benefit from faster turnaround, improved efficiency, and superior finished products, making it an ideal choice for diverse woodworking projects.
