Injection Moulding Machine

Product Description

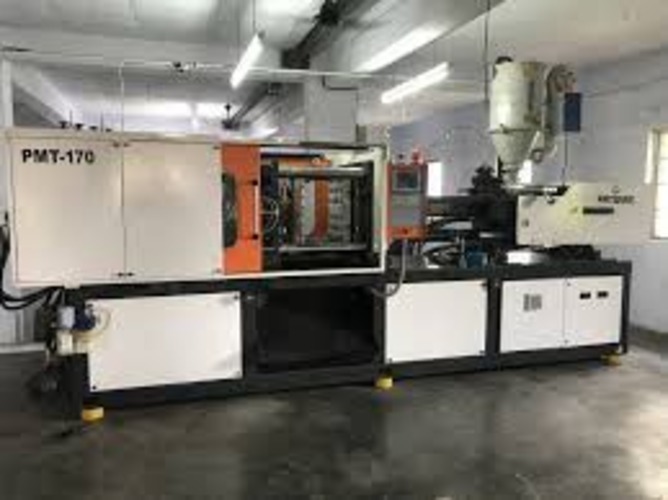

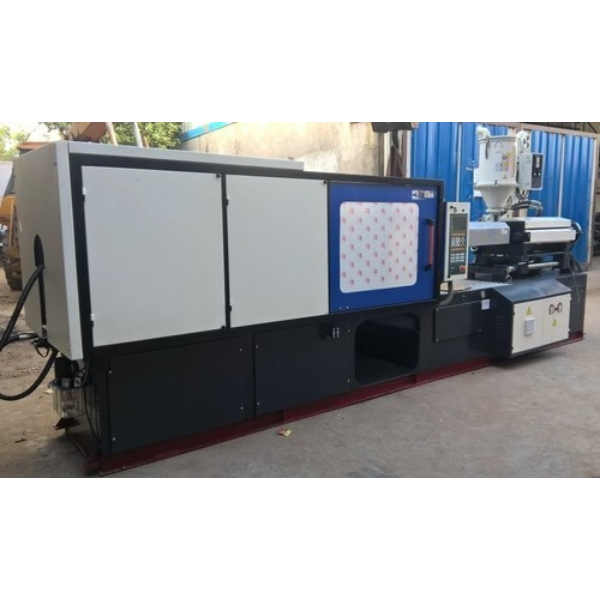

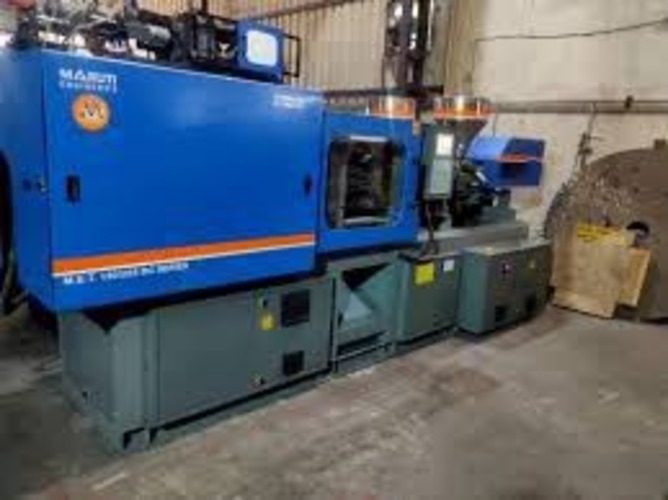

Injection Moulding Machine

An injection molding machine, also known as an injection press, is a highly precise and automated piece of equipment used to produce plastic parts in large volumes. It works by injecting molten plastic material under high pressure into a mold, where the plastic cools and solidifies into the desired shape.The machine is generally divided into two main units that work in a continuous cycle:

The Injection Unit: This is where the plastic material is prepared and injected. It includes a hopper to hold the plastic pellets, a heated barrel with a rotating reciprocating screw that melts and mixes the plastic, and a nozzle at the end that connects to the mold. The screw advances the molten plastic forward and injects it into the mold.The Clamping Unit:

This unit holds the mold securely closed during the injection and cooling phases. It consists of two platens that hold the mold halves together. The clamping force, measured in tons, must be strong enough to resist the high pressure of the injected plastic and prevent the mold from opening, which would lead to defects like "flashing" (excess material leaking out). After the plastic has cooled, the clamping unit opens the mold, and an ejector system pushes the finished part out.

Types of Injection Molding MachinesInjection molding machines are primarily categorized by their driving system:Hydraulic:

Historically the most common type, hydraulic machines use hydraulic fluid to generate the high forces required for clamping and injection. They are known for their strength and reliability, particularly for large parts.Electric: These machines use electric servo motors for all machine movements.

They are highly precise, energy-efficient, and quieter than hydraulic machines. They are often preferred for medical and electronic components where high precision is critical.Hybrid: Combining the best of both worlds, hybrid machines use a mix of hydraulic and electric systems. They offer the power of a hydraulic system with the energy efficiency and precision of an electric machine.
